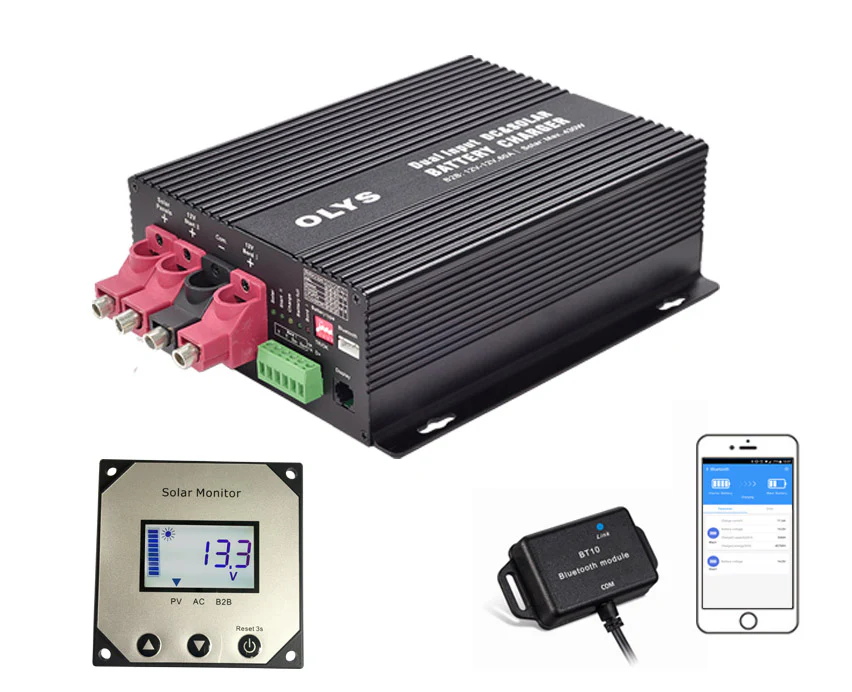

12V 60A Dual Input DC - DC Charger with 30A Solar Input
With this 60A Solar DC DC Charger you can charge/maintain your auxiliary with the vehicles charging system or with solar panels.
-

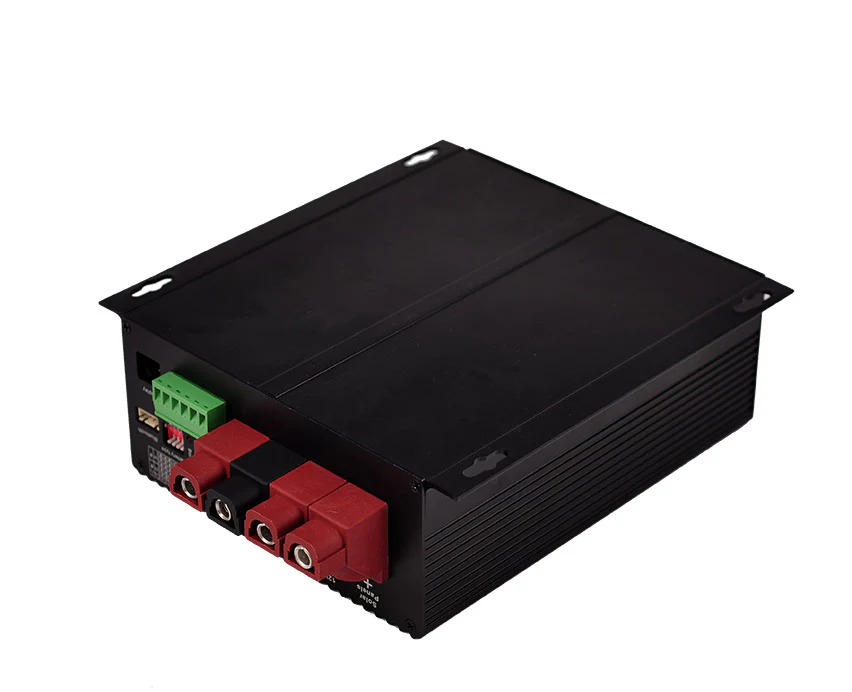

Strong Aluminum case with mounting brackets
-
60A DC -DC Charging current
-
30A Solar Charging current
-
MPPT Regulator
-
4 Stage high frequency Charging profile
-
Compatible with AGM/Gel, Sealed, Flooded, LifePO4, Lithium-ion
-
Temperature sensor which auto adjust power output
-
Bluetooth Adapter
-
Protection for over charging, low voltage, short circuit and high temperature.
-
Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specification
| Model: | BS126030 |
| Type: | Multi Stage Solar DC to DC |
| Size: | 190 x 215 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 13.2-16.0 Volts |
| Output/Charging Voltage: | 13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts) |
| Output Current: | 60AMP DC-DC, 30AMP Solar |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 14.7V(AGM/Gel), 14.4V(Lead Acid), 15.4V(Calcium), 14.4V(LiON) |
| Equalisation: | Automatic |
| Float Charge Voltage: | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
| Float Charge Current: | 100mA |
| Battery Range: | 18 to 250Ah |
| 0-1 Metres Cable: | 12AWG |
| 1-5 Metres Cable: | 8 AWG |
| 5 Metres Cable: | 6 AWG |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
