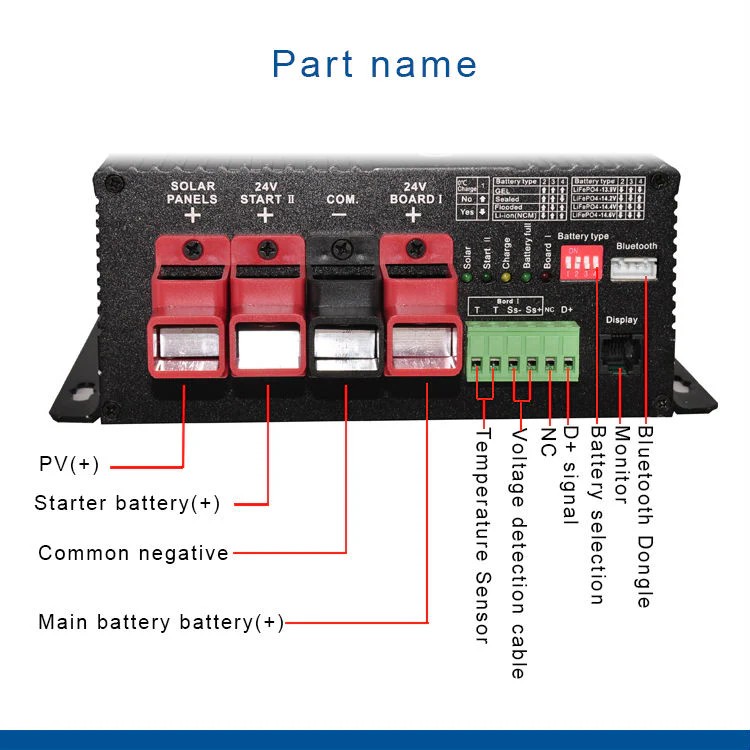

24V 50A DC to DC Charger with 30A Solar Output
With this 50A 24V DC DC Charger with inbuilt MPPT Solar Charge Controller you can rapid charge/maintain your auxiliary with the vehicles charging system while have solar input. Compatible with LiFePO4 Cells and other battery chemistries.
-
Strong Aluminum case with mounting brackets
-
Massive 50A Charging current from alternator
-
30A charging from Solar Input
-
3 Stage high frequency Charging profile
-
Push button operation and compatible with AGM/Gel, Calcium, Lion, LiFePO4, Lead-Acid Batteries
-
Temperature sensor which auto adjust power output
-
Protection for over charging, low voltage, short circuit and high temperature.
-
Reverse polarity protection for both input and outputs
- Digital Display (Display)
Specifications
| Model: | B2B24245030 |
| Type: | Multi Stage DC to DC |
| Size: | 190 x 215 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 24 Volts |
| Output/Charging Voltage: | 25.2-29.2 Volts |
| DC-DC Output Current: | 50AMP |
| Solar Output Current: | 30AMP |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 28.6V(AGM/Gel), 29.4V(Lead Acid), 25.2V(LiON), 27.8~29.2V (LiFePO4) |
| Equalization: | Automatic |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
