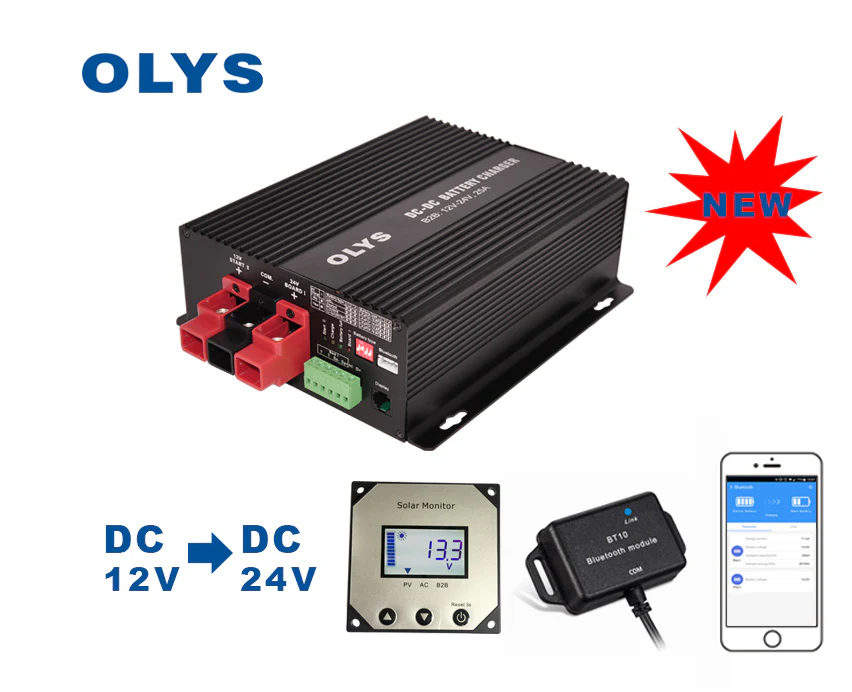

12V to 24V 25A DC to DC Charger
With this 12V to 24V 25A DC DC Charger you can rapid charge/maintain your auxiliary with the vehicles charging system. Compatible with LiFePO4 Cells and other battery chemistries. Charge your 24V Auxiliary battery from your 12V alternator.
- Strong Aluminum case with mounting brackets
- 12V to 24V charging
- Massive 25A Charging current
- 4 Stage high frequency Charging profile
- Push button operation and compatible with AGM/Gel, Calcium, Lion, LiFePO4, Lead-Acid Batteries
- Temperature sensor which auto adjust power output
- Protection for over charging, low voltage, short circuit and high temperature.
- Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specifications
| Model: | B2B122425 |
| Type: | Multi Stage DC to DC |
| Size: | 190 x 215 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 12 Volts |
| Output/Charging Voltage: | 25.2-29.2 Volts |
| Output Current: | 25AMP |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 28.6V(AGM/Gel), 29.4V(Lead Acid), 25.2V(LiON), 27.8~29.2V (LiFePO4) |
| Equalization: | Automatic |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
With this 12V to 24V 25A DC DC Charger you can rapid charge/maintain your auxiliary with the vehicles charging system. Compatible with LiFePO4 Cells and other battery chemistries. Charge your 24V Auxiliary battery from your 12V alternator.
- Strong Aluminum case with mounting brackets
- 12V to 24V charging
- Massive 25A Charging current
- 4 Stage high frequency Charging profile
- Push button operation and compatible with AGM/Gel, Calcium, Lion, LiFePO4, Lead-Acid Batteries
- Temperature sensor which auto adjust power output
- Protection for over charging, low voltage, short circuit and high temperature.
- Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specifications
| Model: | B2B122425 |
| Type: | Multi Stage DC to DC |
| Size: | 190 x 215 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 12 Volts |
| Output/Charging Voltage: | 25.2-29.2 Volts |
| Output Current: | 25AMP |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 28.6V(AGM/Gel), 29.4V(Lead Acid), 25.2V(LiON), 27.8~29.2V (LiFePO4) |
| Equalization: | Automatic |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
