12V 30A DCDC Charger with 30A Solar Input
With this 30A dual input DC DC Charger with solar input you can charge/maintain your auxiliary with the vehicles charging system or with solar panels.
-

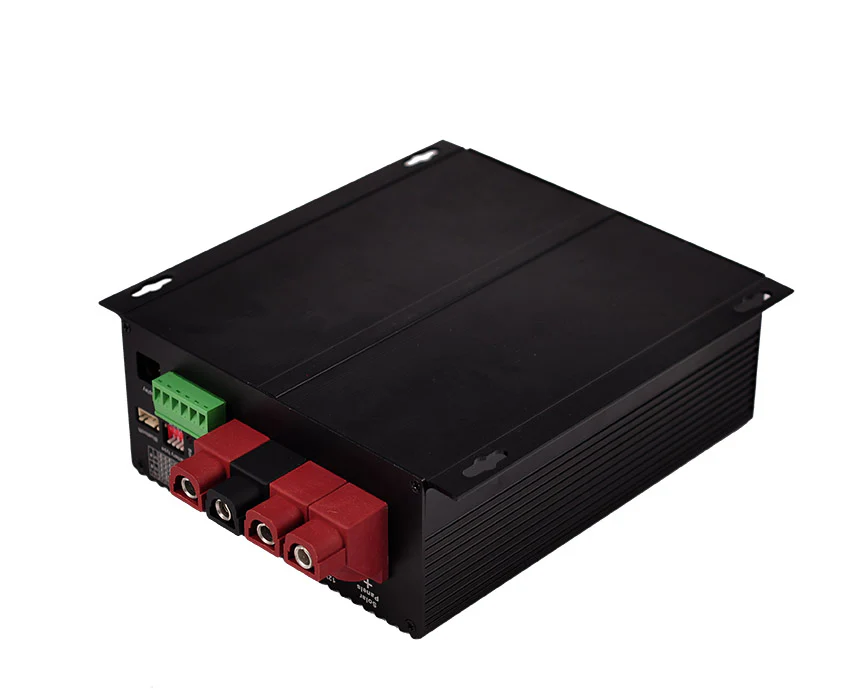

Strong Aluminum case with mounting brackets
-
30A DC -DC Charging current
-
20A Solar Charging current
-
MPPT Regulator
-
4 Stage high frequency Charging profile
-
Compatible with AGM/Gel, Sealed, Flooded, LifePO4, Lithium-ion
-
Temperature sensor which auto adjust power output
-

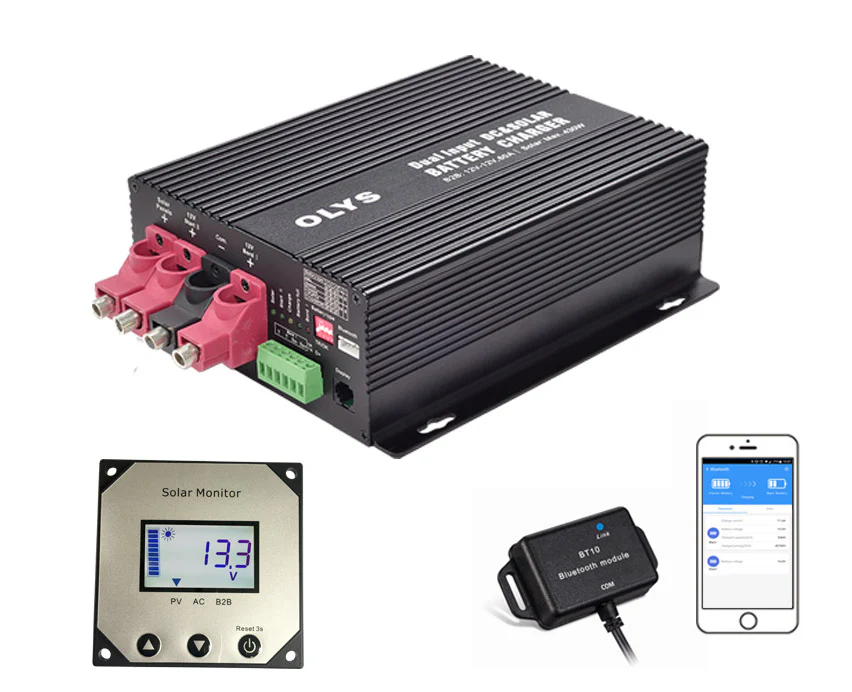

Bluetooth Adapter
-
Protection for over charging, low voltage, short circuit and high temperature.
-
Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specification
| Model: | BS123020 |
| Type: | Multi Stage Solar DC to DC |
| Size: | 190 x 194 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 13.2-16.0 Volts |
| Output/Charging Voltage: | 13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts) |
| Output Current: | 30AMP DC-DC, 20AMP Solar |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 14.7V(AGM/Gel), 14.4V(Lead Acid), 15.4V(Calcium), 14.4V(LiON) |
| Equalisation: | Automatic |
| Float Charge Voltage: | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
| Float Charge Current: | 100mA |
| Battery Range: | 18 to 250Ah |
| 0-1 Metres Cable: | 12AWG |
| 1-5 Metres Cable: | 8 AWG |
| 5 Metres Cable: | 6 AWG |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
With this 30A dual input DC DC Charger with solar input you can charge/maintain your auxiliary with the vehicles charging system or with solar panels.
-
Strong Aluminum case with mounting brackets
-
30A DC -DC Charging current
-
20A Solar Charging current
-
MPPT Regulator
-
4 Stage high frequency Charging profile
-
Compatible with AGM/Gel, Sealed, Flooded, LifePO4, Lithium-ion
-
Temperature sensor which auto adjust power output
-
Bluetooth Adapter
-
Protection for over charging, low voltage, short circuit and high temperature.
-
Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specification
| Model: | BS123020 |
| Type: | Multi Stage Solar DC to DC |
| Size: | 190 x 194 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 13.2-16.0 Volts |
| Output/Charging Voltage: | 13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts) |
| Output Current: | 30AMP DC-DC, 20AMP Solar |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 14.7V(AGM/Gel), 14.4V(Lead Acid), 15.4V(Calcium), 14.4V(LiON) |
| Equalisation: | Automatic |
| Float Charge Voltage: | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
| Float Charge Current: | 100mA |
| Battery Range: | 18 to 250Ah |
| 0-1 Metres Cable: | 12AWG |
| 1-5 Metres Cable: | 8 AWG |
| 5 Metres Cable: | 6 AWG |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
Original: $207.22
-70%$207.22
$62.17Description
With this 30A dual input DC DC Charger with solar input you can charge/maintain your auxiliary with the vehicles charging system or with solar panels.
-
Strong Aluminum case with mounting brackets
-
30A DC -DC Charging current
-
20A Solar Charging current
-
MPPT Regulator
-
4 Stage high frequency Charging profile
-
Compatible with AGM/Gel, Sealed, Flooded, LifePO4, Lithium-ion
-
Temperature sensor which auto adjust power output
-
Bluetooth Adapter
-
Protection for over charging, low voltage, short circuit and high temperature.
-
Reverse polarity protection for both input and outputs
- Digital Display (Optional Extra)
Specification
| Model: | BS123020 |
| Type: | Multi Stage Solar DC to DC |
| Size: | 190 x 194 x 70 (mm) |
| Weight | 1.6kg |
| Input: | DC Battery: 13.2-16.0 Volts |
| Output/Charging Voltage: | 13.5-15.4 Volts(Stops charging when alternator output or vehicle battery below 13.0 volts) |
| Output Current: | 30AMP DC-DC, 20AMP Solar |
| Minimum Start Voltage: | 2.0 Volts-For battery being charged |
| Soft Start: | Yes |
| Bulk Charge Voltage: | 14.7V(AGM/Gel), 14.4V(Lead Acid), 15.4V(Calcium), 14.4V(LiON) |
| Equalisation: | Automatic |
| Float Charge Voltage: | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
| Float Charge Current: | 100mA |
| Battery Range: | 18 to 250Ah |
| 0-1 Metres Cable: | 12AWG |
| 1-5 Metres Cable: | 8 AWG |
| 5 Metres Cable: | 6 AWG |
Warranty covers manufacturing defects and is valid for 3 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
