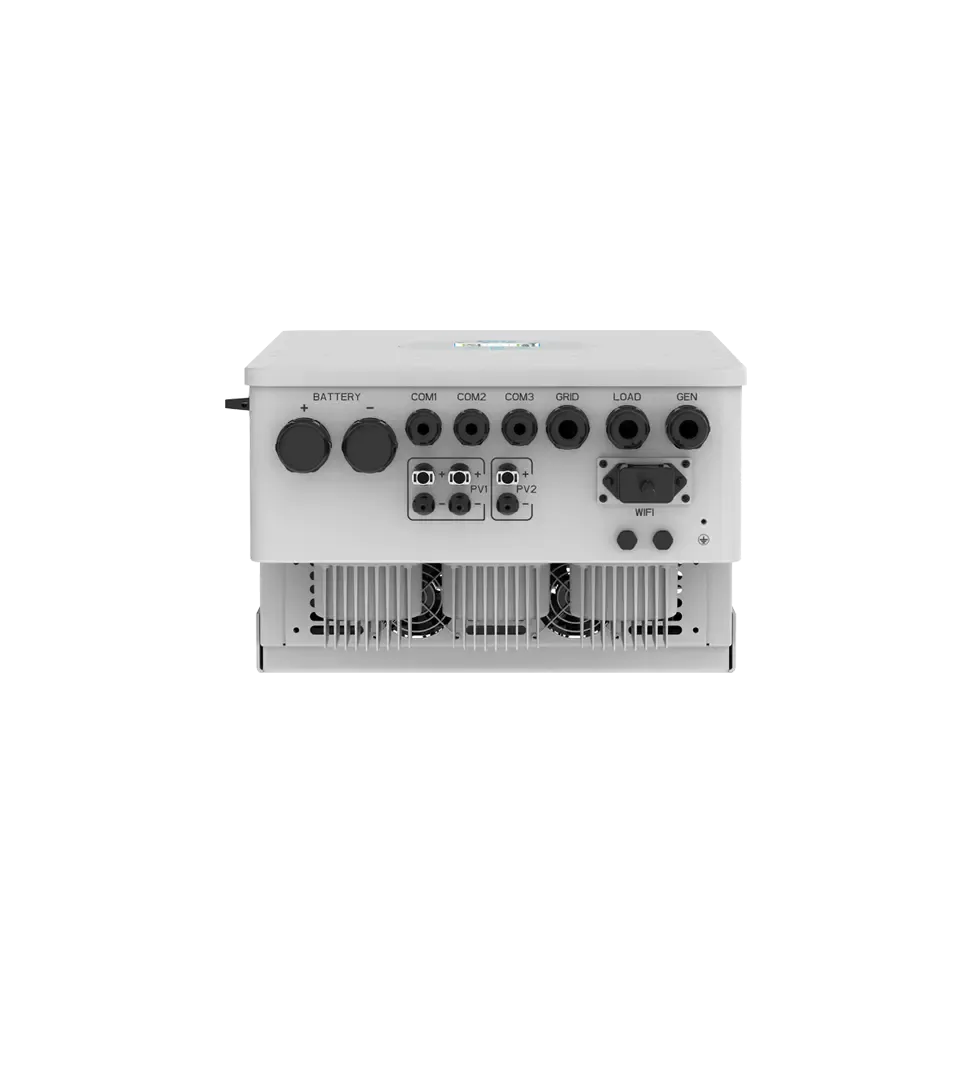

Deye 12kW 3 Phase Hybrid Solar Inverter - SUN-12K-SG04LP3-AU
The Deye 12kW 3 Phase Hybrid Inverter - SUN-12K-SG04LP3-AU solar inverter is engineered to deliver superior performance and efficiency for medium to large residential and commercial solar projects. By seamlessly converting the DC output from solar panels into AC power for use in homes and businesses, this inverter ensures high energy yield with maximum reliability.
Applications:
- Residential Systems: Perfect for larger households with higher energy demands, aiming to lower electricity costs and carbon emissions.
- Commercial Installations: Suitable for small to medium-sized businesses looking to optimize energy consumption and reduce operational costs through renewable energy.
- Hybrid Power Solutions: Capable of supporting both grid-tied and off-grid systems, providing versatile solutions for a variety of installation scenarios.
Benefits and Features:
- High Efficiency: Achieves maximum conversion efficiency of up to 98.2%, ensuring minimal energy loss during the DC to AC conversion process.
- Sturdy and Compact Design: With its IP65 rating, this inverter is protected against dust and water, making it ideal for outdoor installations.
- Intelligent Monitoring: Features integrated Wi-Fi for real-time monitoring and control, allowing users to access performance data remotely through a mobile app or web platform.
- Comprehensive Safety Measures: Equipped with safeguards against over-voltage, short circuits, and overheating to ensure safe operation.
- Silent Operation: Designed with a natural convection cooling system, ensuring quiet performance suitable for residential areas.
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 240 |
| Max. Discharging Current (A) | 240 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV access power (W) | 24000 |
| Max. DC Input Power (W) | 18000 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage (V） | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage (V） | 550 |
| Max. Operating PV Input Current (A) | 26+13 |
| Max. Input Short-Circuit Current (A） | 39+17 |
| No. of MPP Trackers/ No. of Strings MPP Tracker |
2/1+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 12000 |
| Max AC Output Active Power (W) | 12000 |
| AC Output Rated Current (A) | 17.4 |
| Max. AC Output Current (A) | 17.4 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5%ln |
| Efficiency | |
| Max Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protectton | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Over Voltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Inverter Topology (solar/battery) | Transformerless/ HF Transformer |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Noise (dB） | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Optimise your energy production and embrace renewable energy technology with the Deye 12kW Three Phase Hybrid Inverter SUN-12K-SG04LP3-AU solar inverter. Combining efficiency, reliability, and smart features, it is a pragmatic choice for both homes and businesses committed to sustainable energy solutions.
