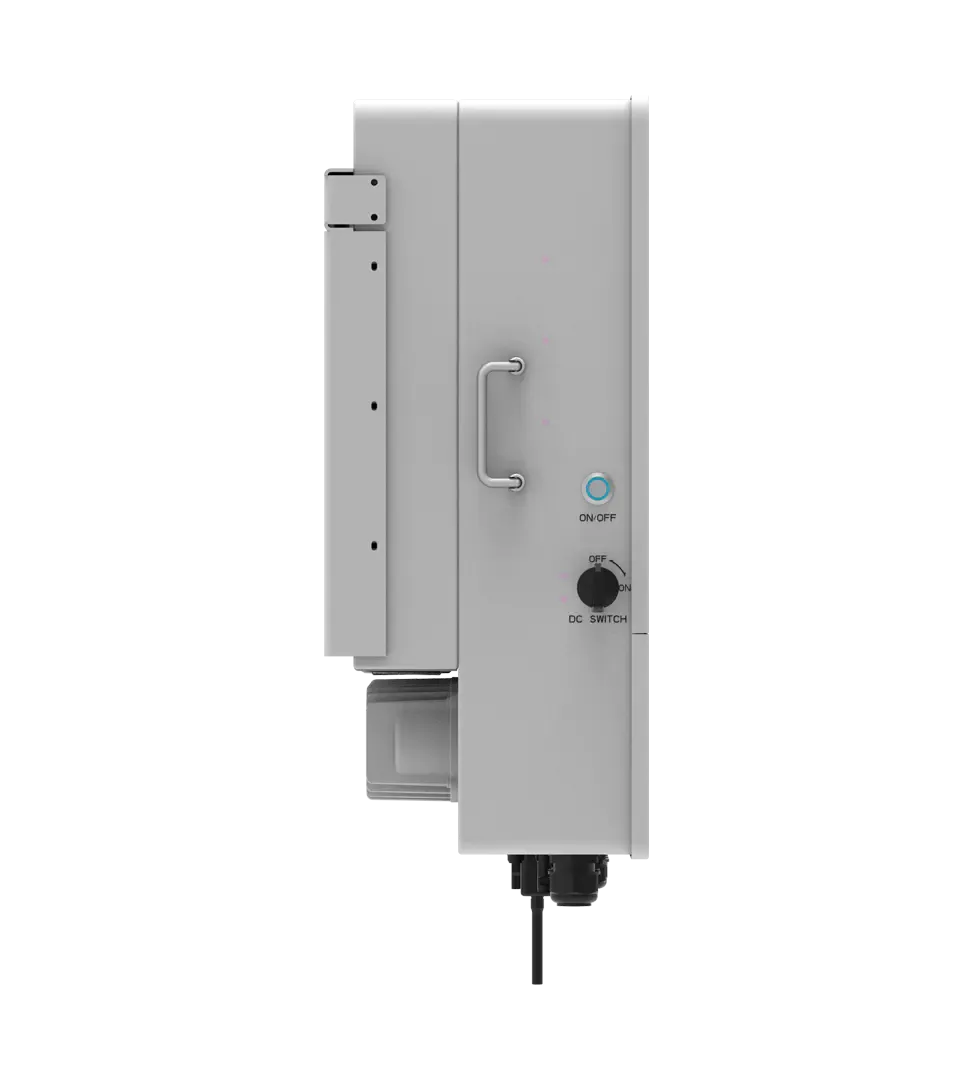

Deye 10kW 3 Phase Hybrid Solar Inverter - SUN-10K-SG04LP3-AU
DEYE 10kW 3 Phase Hybrid Inverter Solar Inverter
The Deye 10kW 3 Phase Hybrid Inverter solar inverter is designed to offer robust performance and efficiency for both residential and small commercial solar power systems. This advanced inverter helps maximise the energy yield by converting the DC power generated by solar panels into usable AC power with minimal loss, making it an integral component of any smart energy solution.
Applications:
- Residential Systems: Ideal for homeowners aiming to reduce electricity bills and minimize their carbon footprint.
- Small Commercial Installations: Suitable for businesses looking to harness solar energy for operational cost reduction and sustainable practices.
- Hybrid System Capability: Supports both off-grid and grid-tied systems, providing flexibility for different installation needs.
Benefits and Features:
- High Efficiency: Boasts a maximum efficiency of up to 98.2%, ensuring optimal energy conversion and reduced waste.
- Durable and Compact Design: Engineered for easy installation indoors or outdoors with an IP65 environmental protection rating.
- Smart Connectivity: Integrated Wi-Fi for real-time monitoring and control, allowing users to track system performance remotely via a mobile app or web dashboard.
- Advanced Safety Features: Includes protection against over-voltage, short-circuit, and overheating, ensuring safe and reliable operation.
- Quiet Cooling System: Operates with low noise levels, suitable for residential and noise-sensitive environments.
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 210 |
| Max. Discharging Current (A) | 210 |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. DC Input Power (W) | 15000 |
| Rated PV Input Voltage (V) | 800 |
| Start-up Voltage（V） | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated DC Input Voltage(V） | 550 |
| Max. Operating PV Input Current (A) | 26+13 |
| Max. Input Short-Circuit Current (A） | 39+17 |
| No. of MPP Trackers/ No. of Strings MPP Tracker |
2/1+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 10000 |
| Max AC Output Active Power (W) | 10000 |
| AC Output Rated Current (A) | 14.5 |
| Max. AC Output Current (A) | 14.5 |
| Max. Continuous AC Pass through (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 230 /240 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz |
| Grid Connection Form | 3L+N+PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) |
| DC Current Injection | <0.5%ln |
| Efficiency | |
| Max Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level |
| Over Voltage Category | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB） | <55 dB |
| Weight (kg) | 38 |
| Cabinet size (mm) | 422W x 658H x254D（Excluding connectors and brackets） |
| Protection Degree | IP65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Harness the power of solar energy with the DEYE 10kW Three Phase Hybrid Inverter Solar Inverter offering high efficiency, reliable performance, and intelligent features to meet the energy needs of modern homes and businesses. Transition to a sustainable energy solution that promotes environmental stewardship and energy independence.
