12V 3000W Pure Sine Wave Hybrid Inverter with 60A MPPT Solar Controller

Take your off-grid setup to the next level with this 12V 3000W Hybrid Inverter, designed with a built-in 60A MPPT solar charge controller. Perfect for caravans, campervans, boats, and small off-grid systems, it delivers reliable power with advanced protection and easy monitoring via the LCD display.

Key Features

• 3000W Pure Sine Wave Output – Safe and stable power for sensitive electronics, appliances, pumps, and tools.
• Built-In 60A MPPT Controller – Optimises solar charging efficiency (97%+) to get the most from your panels.
• Versatile Power Options – Supports AC mains, generator input, solar, and battery.
• Smart LCD/LED Display – Monitor battery voltage, charging status, and system settings in real time.
• High Surge Capacity – Delivers up to 9000VA peak power (max 10 seconds) for starting inductive loads like fridges, compressors, and pumps.
• Flexible Charging – Adjustable 5-stage AC charging current (up to 60A).
• Multiple Protections – Safeguards against overload, short circuit, overcharging, low/high voltage, and over-temperature.
• Compact & Durable Design – Heavy-duty build with intelligent cooling for long service life.

Technical Specifications

• Nominal Power: 3000W (Surge: 9000VA max 10 seconds)
• Battery Voltage: 12V DC
• AC Input Voltage: 184–263V (normal) / 135–270V (wide)
• AC Output Voltage: 208/220/230/240V selectable
• Frequency: 50Hz or 60Hz (auto adjustable)
• Solar Input Range: 15–40V DC
• Max PV Open Circuit Voltage: 40V DC
• Max Solar Input: 800W
• AC Charger Current: 60A adjustable
• Transfer Time: ≤ 20ms
• Efficiency: ≥ 87% (Battery mode) / > 98% (Line mode)

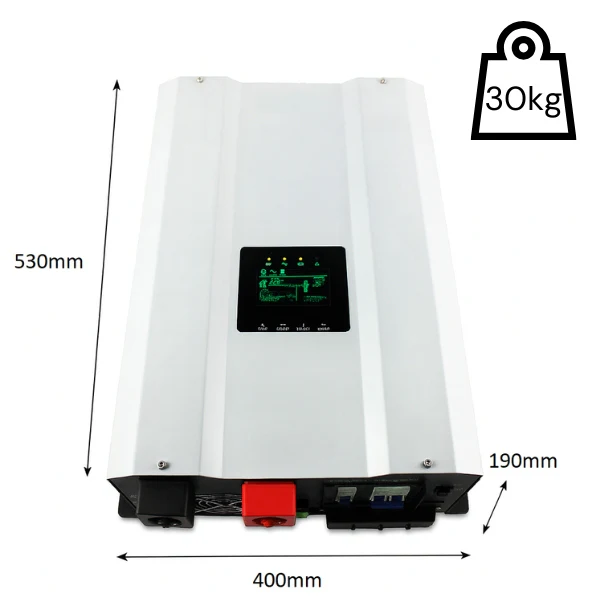

• Dimensions: 530 × 400 × 190 mm
• Weight: 30kg

Applications

• Caravans & Campervans
• Off-Grid Homes & Cabins
• Boats & Marine Systems
• Remote Workshops or Sheds
• Backup Power with Solar + Battery + Generator
