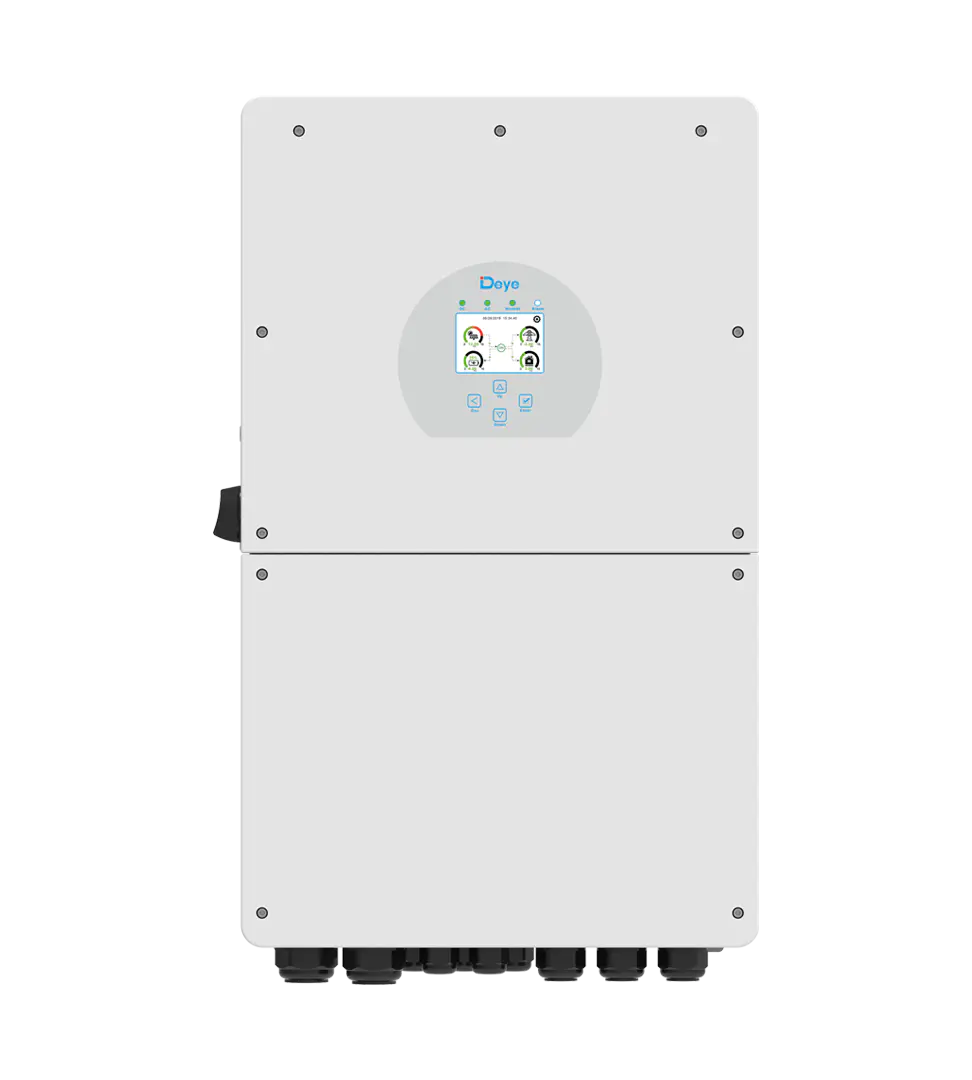

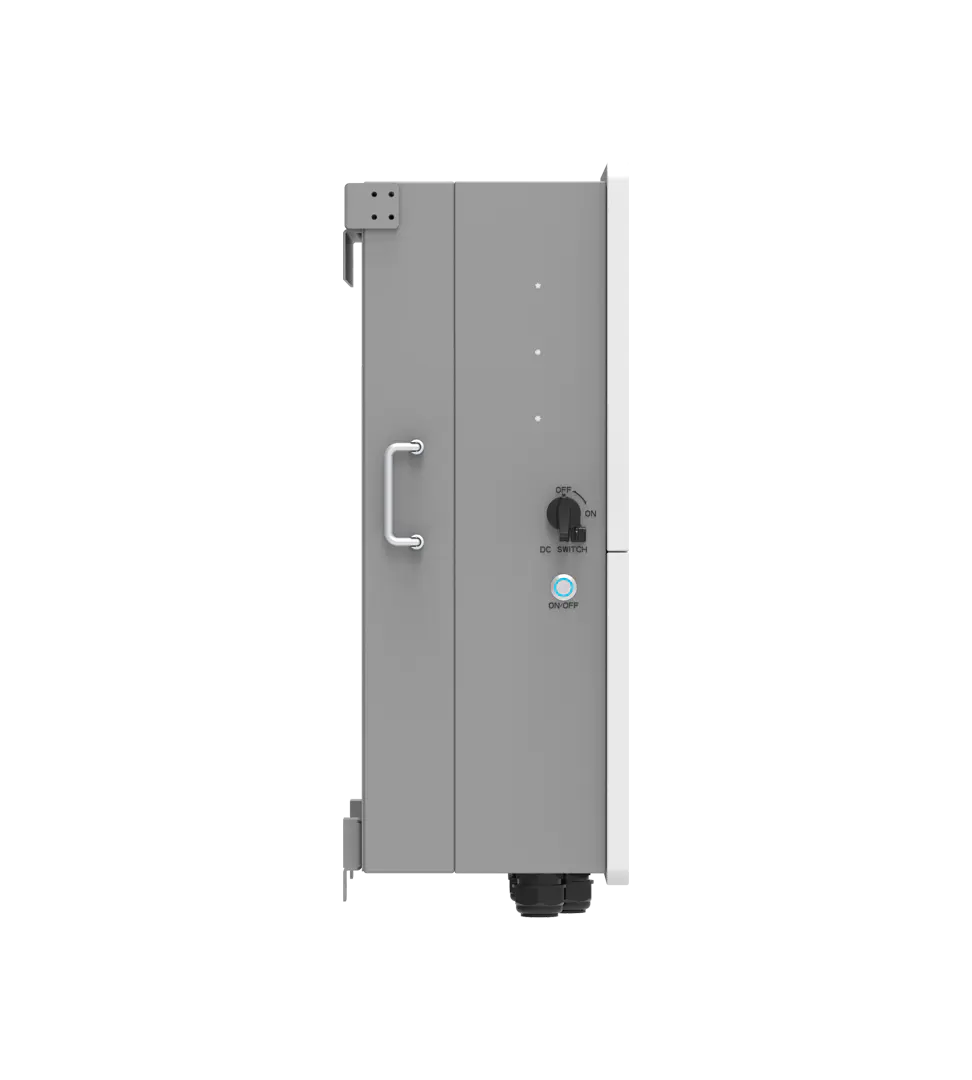

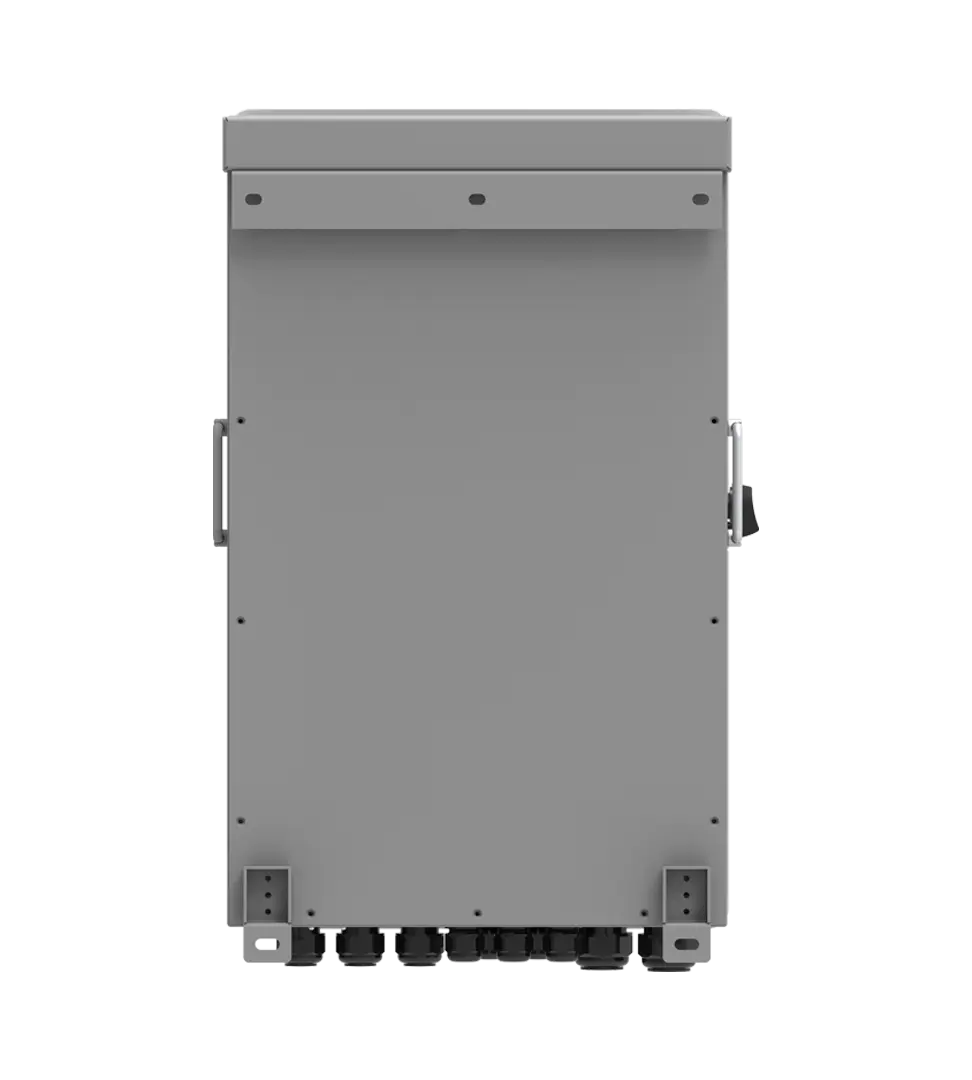

Deye 16kW Single Phase Hybrid Inverter | SUN-16K-SG01LP1-AU
Deye 16kW Hybrid Inverter designed for large off-grid and hybrid solar systems. Features dual MPPT inputs, high-capacity battery charging, generator support and up to 24kW solar PV access for homes, farms, sheds and commercial backup systems.
Deye 16kW Single Phase Hybrid Inverter SUN-16K-SG01LP1-AU
The Deye 16kW Single Phase Hybrid Inverter is a powerful solution for large residential, agricultural and commercial off-grid or hybrid solar systems. Delivering strong 16kW output with flexible solar input and advanced battery integration, it provides reliable energy day and night.
With support for lithium or lead-acid batteries, generator charging, AC coupling and system expansion, this inverter is ideal for high-demand applications requiring dependable backup power and scalable solar storage.
Best Suited For:
- Large off-grid homes and properties
- Farms, machinery sheds and workshops
- Commercial solar and battery systems
- Hybrid solar systems with battery backup
- Sites requiring generator backup integration
Key Benefits:
- High 16kW power output for large household or commercial loads
- Up to 24,000W PV access power allowing substantial solar capacity
- High battery charge and discharge capability for large battery banks
- Dual MPPT design for flexible solar array layouts
- Generator charging support for off-grid reliability
- AC coupling capability for upgrading existing solar systems
- Parallel system support for expanding system capacity
- IP65 weather protection suitable for indoor or outdoor installation
- Touch LCD display for simple monitoring and configuration
- WiFi, RS485 and CAN communication for smart monitoring
Technical Specifications:
| Model | SUN-16K-SG01LP1-AU |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60V |
| Max PV Access Power | 24,000W |
| Max PV Input Voltage | 500V |
| Start-up Voltage | 125V |
| MPPT Voltage Range | 150–425V |
| MPPTs / Strings | 2 MPPT / (2+2) |
| Rated AC Output Power | 16,000W |
| Max AC Output Current | 69.6A |
| Max AC Passthrough | 70A |
| Peak Off-Grid Power | 2× rated power for 10 seconds |
| Rated Voltage | 230V / 240V |
| Grid Frequency Range | 50Hz (45–55Hz) |
| Max Efficiency | 97.6% |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Communication | RS485 / CAN |
| Monitoring | WiFi / GPRS / Bluetooth / LAN (optional) |
| Operating Temperature | -40°C to +60°C |
| Noise Level | <30dB |
| Warranty | 10 Years |
| Grid Regulation | AS/NZS 4777.2 |
Why Choose This Inverter?
The Deye 16kW Hybrid Inverter delivers powerful performance for demanding off-grid and hybrid energy systems. With high solar capacity, flexible battery integration and generator backup capability, it is an ideal solution for large properties requiring reliable energy independence.
