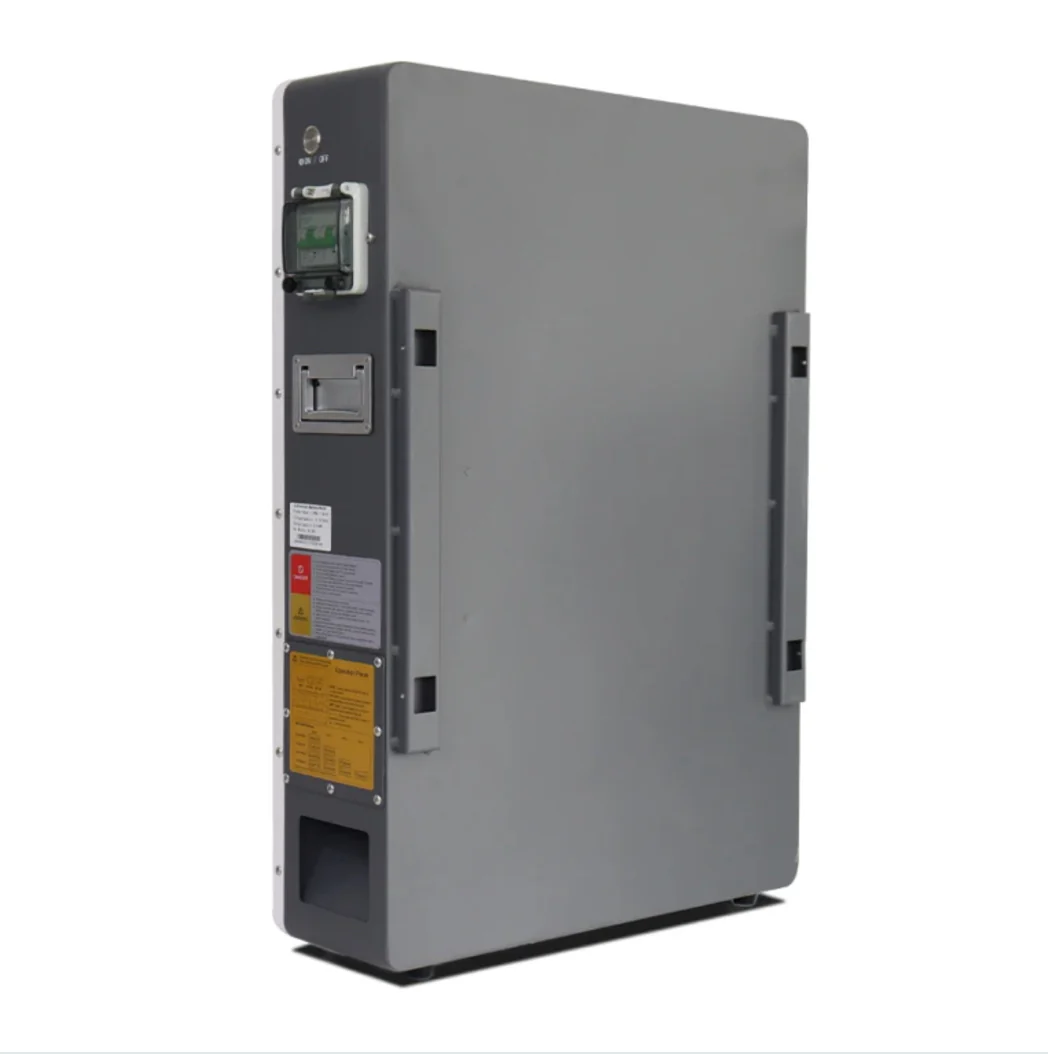

The Enerlution WALL Mounted 10.44kwh Energy Storage Battery LFPWall-10K-V2 is an advanced and versatile wall-mounted energy storage battery designed to enhance modern energy solutions. It leverages the robust lithium iron phosphate (LiFePO4) technology to deliver a safe, reliable, and efficient power storage option for residential and commercial settings.

Key Features:

• Expansion Flexibility: 10.44kWh modular design supports 1-8 batteries in parallel, allowing for customizable capacity expansion.
• Easy Installation: Can be mounted on the wall or floor, which saves installation time and reduces costs.
• Safe & Reliable: Utilises Lithium Iron Phosphate (LFP) cells with a built-in Battery Management System (BMS) for enhanced safety and reliability.
• Environment Adaptability: Operates within a wide temperature range from -20°C to +55°C with IP65 protection class, making it suitable for diverse environmental conditions.
• Perfect Compatibility: Compatible with most low voltage inverters available in the market.
• Long Lifespan: Designed to last more than 15 years with over 6000 cycles at 0.5C and 25°C, ensuring long-term reliability and cost-effectiveness.

Technical Specifications:

Specification	Details
Model	LFPWall-10K-V2
Rated Capacity	204 Ah
Rated Energy	10.44 kWh
Rated Voltage	51.2 V
Battery Voltage Range	45 - 57.6 V
Max. Charging Current	90 A
Max. Discharging Current	140 A
Battery Type	LiFePO4
Max. Output Power	7168 W
Depth of Discharge (DOD)	90%
Modules Connection	1-8 in parallel
Communication	CAN, RS485
Cycle Life	≥ 6000 @ 25°C, 0.5C
Working Temperature Range	Charge: 0°C ~ +50°C
	Discharge: -10°C ~ +55°C
Storage Temperature	-20°C ~ +35°C
Net Weight	96 kg / 211 lb
Gross Weight	125 kg / 275 lb
Product Dimension (WHD)	560 * 805 * 181 mm
Package Dimension (WHD)	720 * 950 * 390 mm
Warranty	YES



Enhance your energy management and resilience with the LFPWall-10K-V2. Perfect for homes, businesses, and off-grid setups that require reliable and sustainable power storage.
