🔋 Product Description

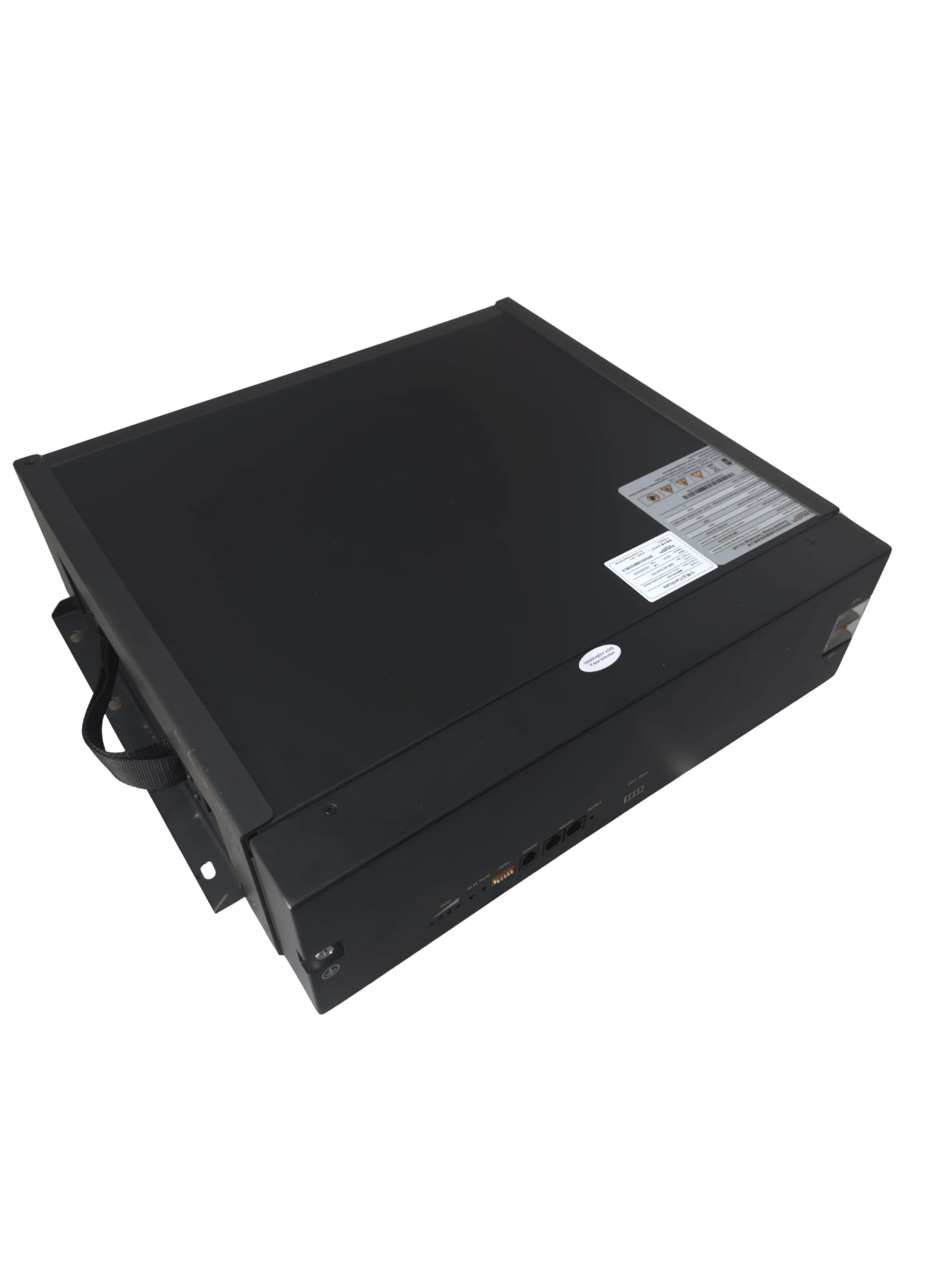

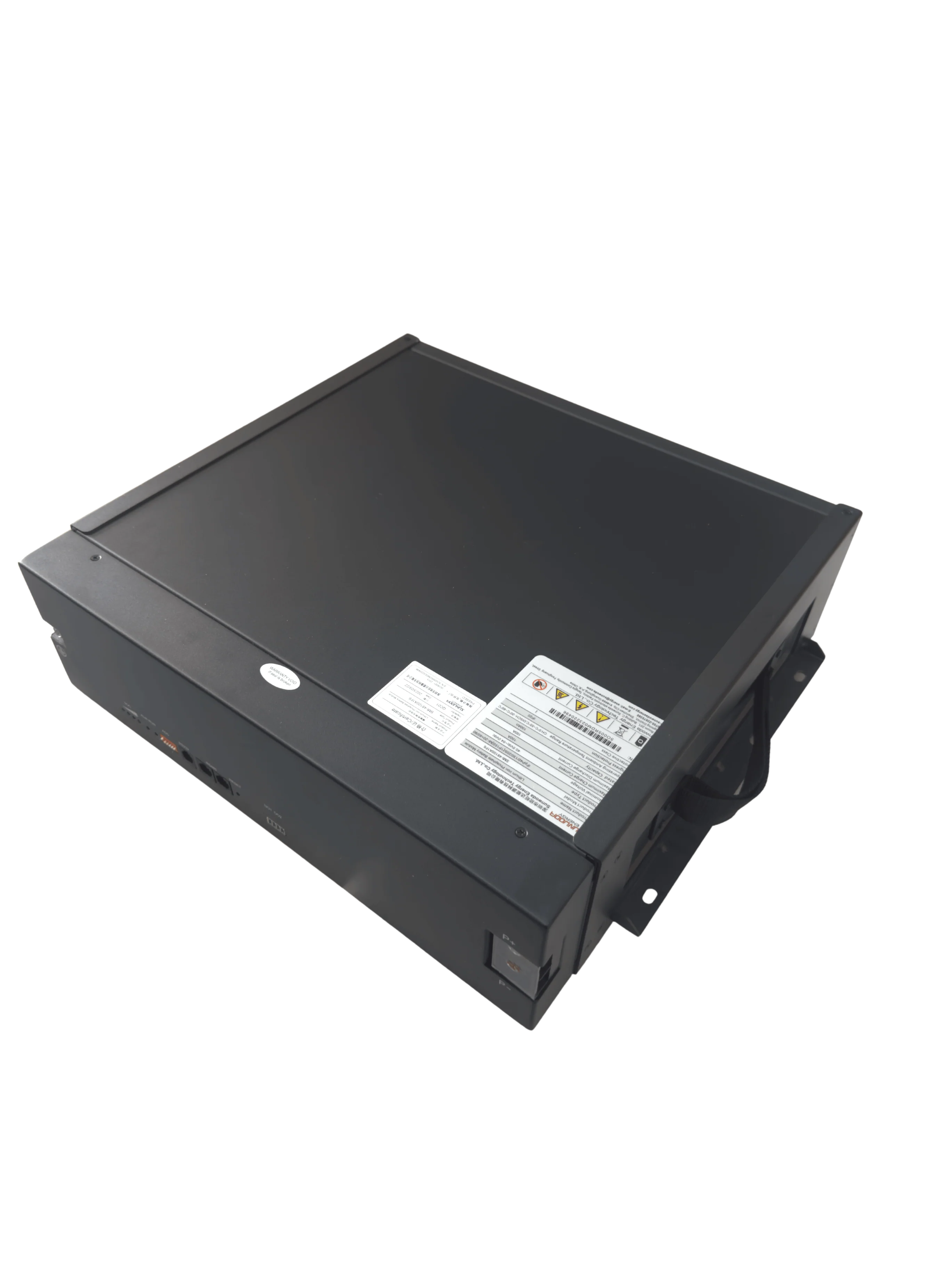

The Sunwoda SMI-48100A1F6 is a high-quality 48V 100Ah rack-mounted LiFePO4 battery module, ideal for off-grid solar, telecom, and industrial backup systems. These batteries have been professionally dismantled from pre-assembled all-in-one units that were never commissioned or put into service. As a result, they’re in like-new condition, offering exceptional value at a fraction of the price of brand-new batteries.

Built with LiFePO4 (LFP) cells, each module provides 4.8kWh of reliable energy storage with over 4,000 cycles at 80% DoD and a design life of 10+ years. The compact 3U rack-mount design makes it perfect for battery cabinets and scalable energy storage applications, supporting up to 16 modules in parallel.

Each unit comes equipped with a built-in basic BMS that provides essential protections (over-voltage, under-voltage, over-current, temperature) and passive cell balancing. RS485 and RS232 communication ports offer integration with compatible inverters and monitoring systems.

✅ Key Features

• Voltage & Capacity: 48V, 100Ah (4.8kWh usable)
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Condition: Never used, dismantled from uncommissioned all-in-one systems
• Cycle Life: 4,000+ cycles @ 80% DoD (25°C)
• Form Factor: 3U standard 19-inch rack-mount
• Communication Ports: RS485 and RS232
• BMS: Built-in passive balancing and essential protection features
• Scalability: Connect up to 16 modules in parallel
• Certifications: IEC 62619, UN38.3

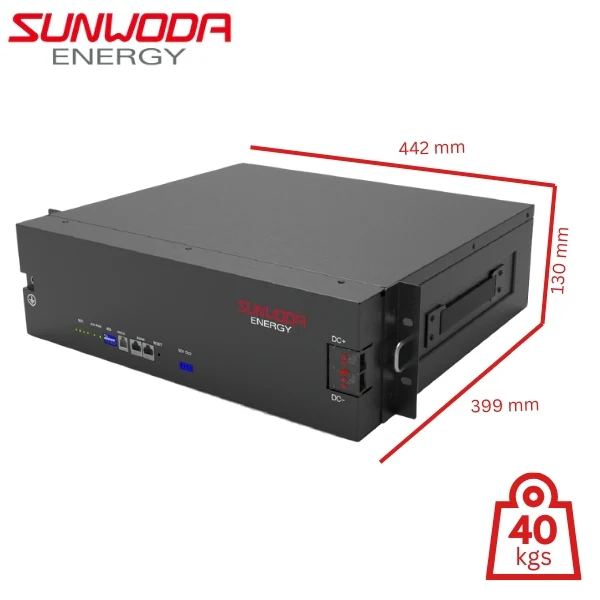

• Dimensions: 442mm (W) x 399mm (D) x 130mm (H)
• Weight: Approx. 40kg

⚡ Perfect For

• Off-grid solar battery storage
• Remote telecom or NBN towers
• Industrial backup and UPS systems
• Battery cabinet builds or retrofits
• Projects seeking value without compromising quality

📦 What’s Included

• 1 x Sunwoda SMI-48100A1F6 48V LiFePO4 Battery
• RS485/RS232 communication interfaces
• Pre-fitted battery terminal caps
• User manual and documentation
