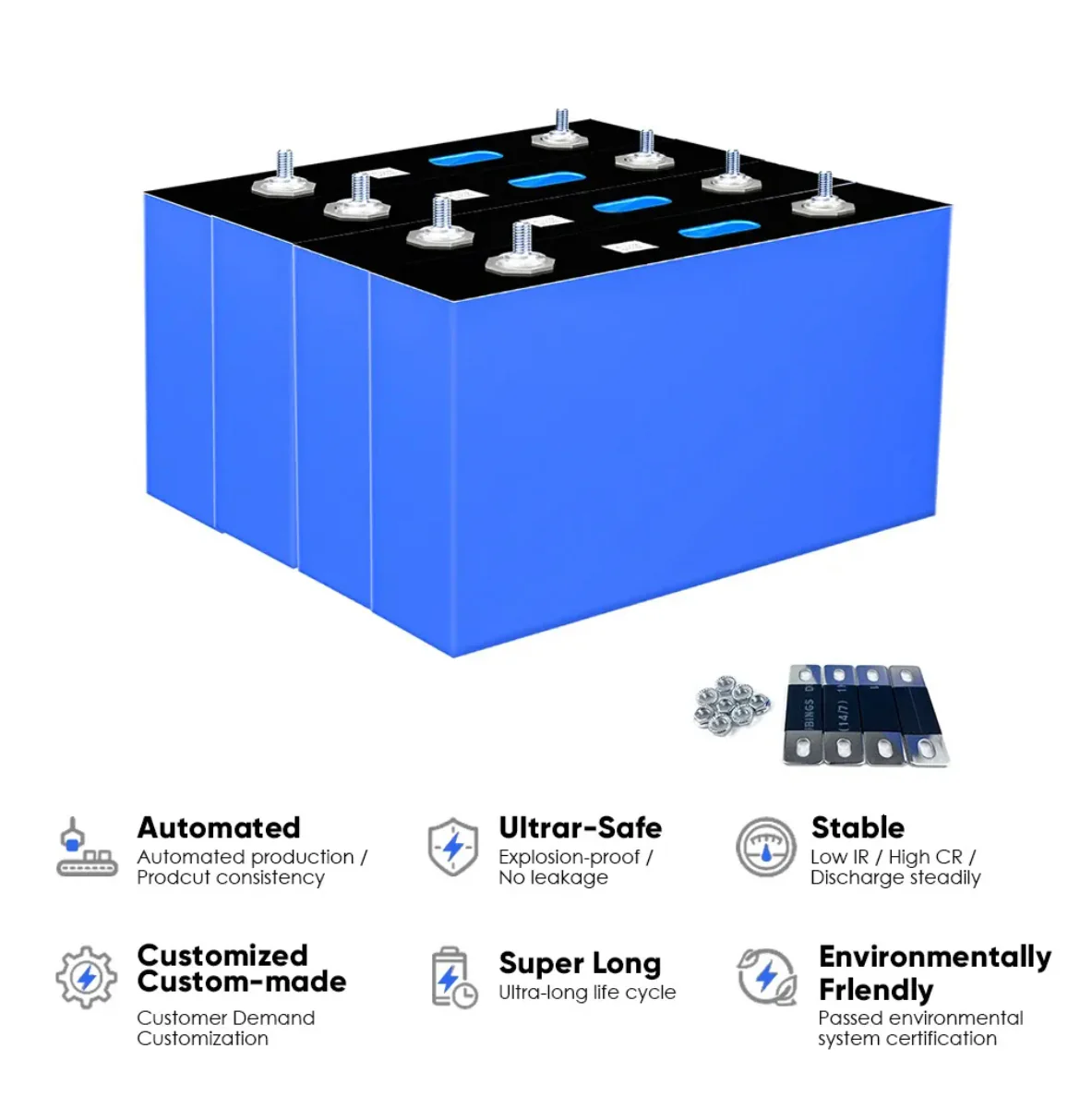

EVE MB56 628AH Lithium Iron Phosphate (LiFePO4) Deep Cycle Battery

Optimize your power system with the EVE MB56 628AH Lithium Iron Phosphate (LiFePO4) battery, engineered for high-demand applications such as marine, RV, solar energy storage, and off-grid power solutions. Featuring a high capacity of 628Ah, this advanced battery delivers consistent, reliable energy output with superior cycle life and safety.

Technical Specifications:

• Nominal Voltage: 3.2V per cell, which aligns with LiFePO4 chemistry.
• Capacity: Around 560Ah (actual reported 628Ah capacity, which can vary based on testing/usage).
• Discharge Current: 560A at 1C (full discharge in 1 hour).
• Max Charge Voltage: 3.65V per cell.
• Impedance: ≤0.25mΩ.
• Temperature Range: Charging from -5°C to 60°C; discharging from -30°C to 60°C.
• Cycle Life: ≥12,000 cycles, typical for LiFePO4.
• Weight and Size: 11.5kg, dimensions approximately 352.3mm (L) x 71.7mm (W) x 207.2mm (H).
• Max Continuous Discharge: High current capacity for demanding loads
• Fast Charging: Significantly reduces downtime
• Lightweight Design: Approximately 30% lighter than traditional lead-acid batteries
• Advanced BMS: Built-in Battery Management System ensures safety, optimal charging, and discharging

---

Voltage and Capacity at Different Configurations:

Since each cell is 3.2V nominal:

• For 12V system: Connect 4 cells in series (4×3.2V = 12.8V nominal).
• For 24V system: Connect 8 cells in series (~25.6V).
• For 48V system: Connect 16 cells (~51.2V).

Capacity:

• The capacity (Ah) remains approximately the same regardless of series/parallel configuration, assuming the same cell model.

Total Wh (Watt-hours):

• 12V: 12V * 560Ah ≈ 6,720 Wh.
• 24V: 24V * 560Ah ≈ 13,440 Wh.
• 48V: 48V * 560Ah ≈ 26,880 Wh.

Features & Benefits:

• Long Cycle Life: Significantly outperforms lead-acid batteries, providing years of reliable service.
• Stable Performance: Maintains consistent voltage output under load.
• Eco-Friendly & Safe: Non-toxic, thermally stable, and equipped with protective circuitry.
• Versatile Application: Ideal for marine, RV, solar energy storage, backup power, and off-grid systems.
• Easy Installation: Compact size and robust design facilitate hassle-free setup.

Upgrade to the EVE MB56 628AH Lithium Battery for a proven, durable, and efficient energy storage solution that reduces weight, enhances performance, and provides peace of mind for your power needs.
