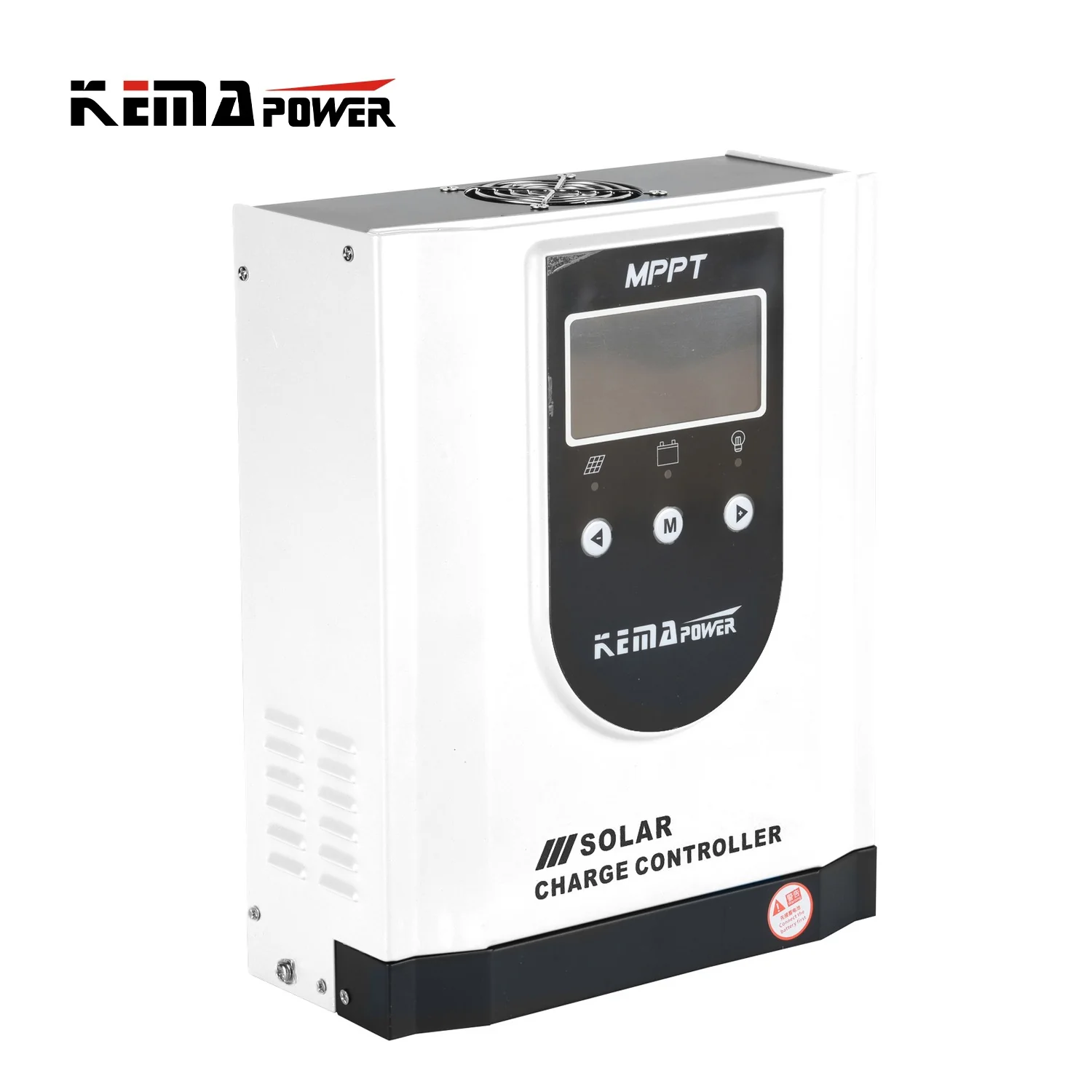

100A MPPT Solar Charge Controller – (12-48V) LiFePO4 Solar Charge Controller

This advanced MPPT Solar Charge Controller is perfect for 12V, 24V, 36V or 48V battery systems, offering a maximum PV input of 150V and supporting charging currents up to 100A. Compatible with LiFePO4 and other battery chemistries, it features a full-colour LCD, multiple charging stages, Bluetooth/WiFi options, and intelligent protections. Ideal for off-grid and hybrid systems requiring reliable, high-efficiency charging.

Visit our Documents & Videos Section for the complete Product Datasheet and to learn more about how this charge controller can revolutionize your energy setup.

🔧 Specifications:

System Voltage	12V / 24V / 36V / 48V (Auto)
Max Charging Current	100A
Max PV Input Voltage	150V
Min PV Start Voltage	20V / 40V / 60V / 80V (based on system voltage)
Charging Efficiency	Up to 97%
MPPT Tracking Efficiency	>99%
No Load Consumption	≤35mA (48V)
Battery Types	Sealed, Gel, Flooded, Lithium (LiFePO₄), User Defined
Charging Modes	MPPT, Bulk, Absorption, Float, Equalization, CV
Lithium Battery Activation	Yes
Display	Color LCD with backlight + 3-button control

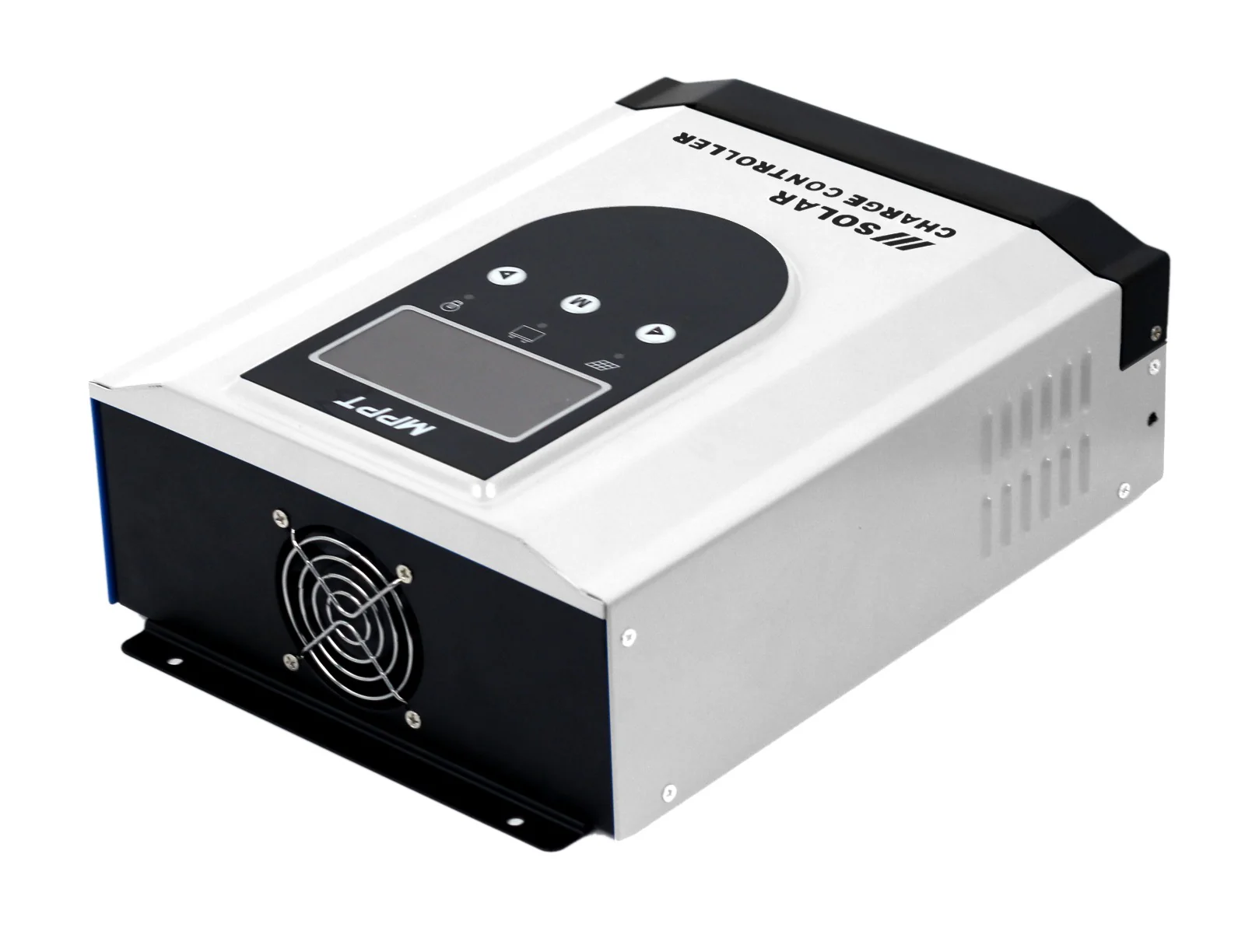

Cooling Method	Aluminium heat sink + cooling fan

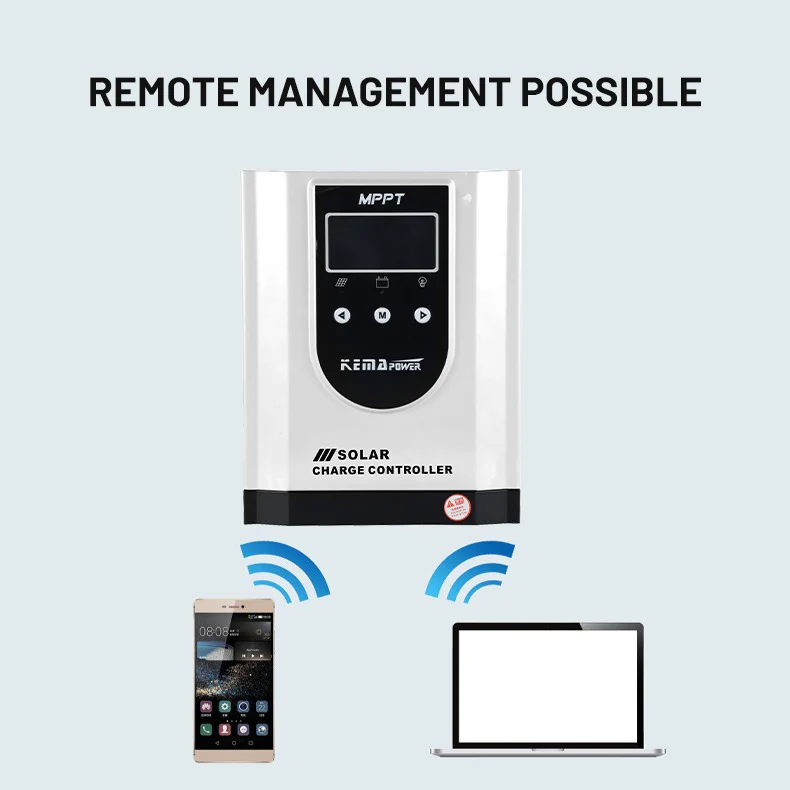

Communication	RS485 (RJ45), WiFi & Bluetooth (optional)
Load Control Modes	Normal, Light Control, Timing, Reverse Light Control
Protections	Reverse polarity, Over-voltage, Over-temp, Overload, Low Voltage
Operating Temperature	-20°C to +55°C
Storage Temperature	-30°C to +80°C
Humidity	10–90% RH (non-condensing)
Dimensions (mm)	340×240×108 (model dependent)
Weight	2.5kg to 4.7kg



Warranty covers manufacturing defects and is valid for 2 years from the date of purchase. The warranty does not include damage caused by misuse, accidental damage, or unauthorized repairs.
